Austin Insulators Inc.
suppliers of RF insulators and transformers since 1933






Products:
Guy Insulators
Open-End Type

Description
Specifications
Notes

ANSI Standard Type

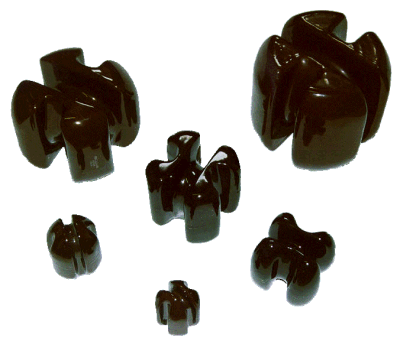

Guy Insulators
Open-End Type

  • Designed specifically for use in RF applications.
  • Manufactured of high quality wet-process electrical grade porcelain. Standard finish is vitreous glaze (brown).
  • Guy insulators are designed to be rugged, resistant to mechanical breakage, and have zero moisture absorption.
  • Cable groove approaches to the hole are designed to minimize cable stresses.
  • For non-critical applications such as breaking up guy wires to minimize re-radiation effects.

Click here to go to Austin ANSI Standard Type Guy Insulators.




  Specifications


Catalogue Number
Recommended
Working Load
Cable
Size

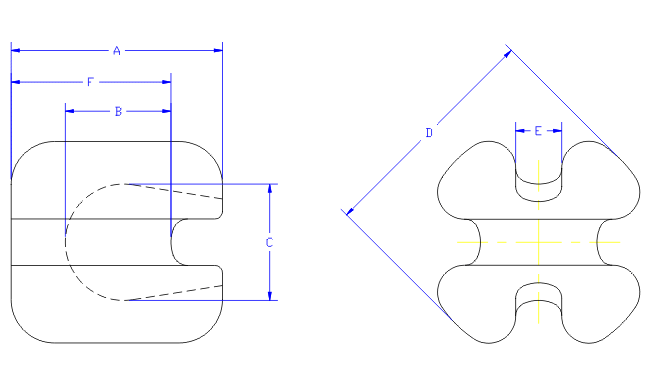

Dimensions [in/mm]
Net Weight
per 100
Low Frequency
Flashover Voltage
[kV]
A
B
C
D
E
F
AOA-35
11,500 lb.
5,216 kg
0.625"
15.9mm
4.312"
109.5
2.125"
54.0
2.437"
61.9
4.687"
119.1
0.875"
22.2
3.25"
82.6
337 lb.
153 kg
20
AOA-50
16,500 lb.
7,484 kg
0.75"
19.1mm
4.875"
123.8
2.437"
61.9
2.687"
68.3
5.375"
136.5
1.062"
27.0
3.687"
93.7
500 lb.
227 kg
21
AOA-65
21,500 lb.
9,752 kg
0.875"
22.2mm
5.5"
139.7
2.687"
68.3
3"
76.2
6.437"
163.5
1.25"
31.8
4.125"
104.8
805 lb.
365 kg
22
AOA-85
28,000 lb.
12,701 kg
1"
25.4mm
6.125"
155.6
3"
76.2
4.187"
106.4
7.5"
190.5
1.5"
38.1
4.562"
115.9
1,210 lb.
549 kg
29
AOA-120
40,000 lb.
18,144 kg
1.125"
28.6mm
6.875"
174.6
3.375"
85.7
4.562"
115.9
8.5"
215.9
1.625"
41.3
5.125"
130.2
1,890 lb.
857 kg
30





Notes:

  1. Recommended Working Load is calculated using a minimum factor of safety (FOS) of 3.
  2. The 60 Hz dry flashover voltages specified are provided for comparison purposes only and cannot be used to determine permissible RF operating voltages, which are dependent on the type of connection used between the guy line and the guy insulator.

Please consult with us when antenna systems over 100 kW are involved or whenever doubt exists regarding the suitability of the insulators for the intended application.
